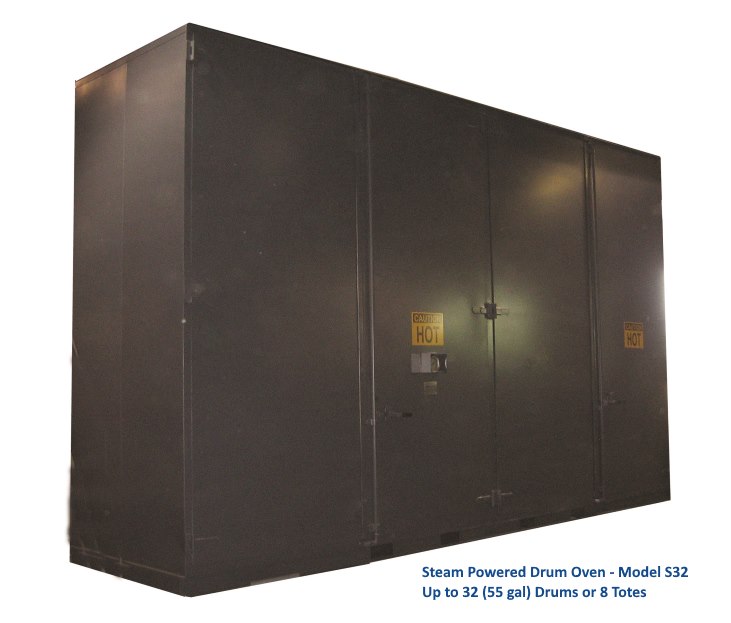

'Sahara Hot Box' Model S32 Steam Powered Drum Heater

Part of Benko Products 'Sahara Hot Box' line of Steam Drum Ovens & Drum Heaters

Our Model S32 Steam Drum Heater (and/or Tote Heater) is available with state-of-the-art digital controls with independent over-temperature protection. Units in a manifolded arrangement can be individually turned off when not heating,with independent over-temperature protection, perfect for your drum storage and drum heater needs, where up to 32 drums or 8 Totes require heating or temperature control.

The Benko Products SAHARA HOT BOX is recognized as the industry leader in 55-gallon drum and/or Tote heating equipment.

Cost Effective • Innovative Designs

Benko Products | Made in the USA | Built to Last

Built to Last

Model S32 Steam Drum Heater Specifications

Details
The Hot Box has many unique features:
• Rugged steel construction
• Precise digital temperature control
• Portable; Just pick-up with a forklift
• Built-in spill containment
2 Year Manufacturer’s Warranty

Capacity
32 drums (55 gal.) or 8 totes
32,000 lbs. total capacity

Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available

Dimensions
Interior: 230”W x 55.25”D x 97.5”H
Exterior: 237”W x 62”D x 118”H

Insulation
3" thick, 6# density mineral wool

Heating Medium
Steam, hot oil, or hot water

Heat Exchanger
• Finned tube heating coil rated for saturated steam up to 200 psig.
• Recirculating coil available for hot oil or hot water

Temperature Range
Room temperature to 350°F

Integrated Spill Containment Pan
208 gallon capacity

Finish
• Exterior finished with acrylic enamel
• Interior finished with heat resistant silver
• Stainless steel available

Weight
10,050 lbs.

Installation
Shipped completely assembled.
Set in place and hook up power supply.

Custom Engineering
Custom engineered, computer designed units are available. Contact us for more information.



Available Options for Steam Model S32



Model S32 Steam Drum Heater - Image Gallery

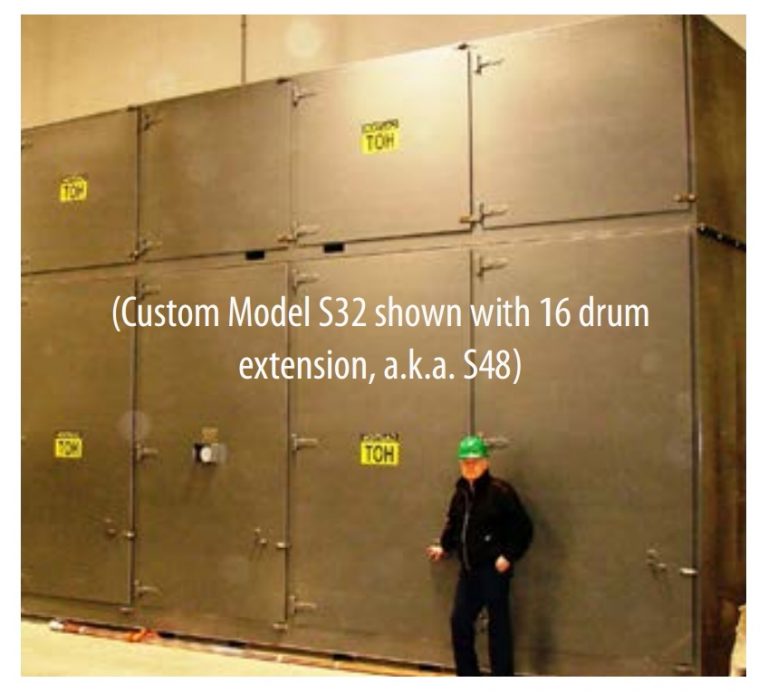

'Sahara Hot Box' Model S32 - Steam Tote Heater Custom Built 'Sahara Hot Box' Model S48 - Steam Drum Heater | Drum Oven

The Sahara Hot Box line of Steam Powered Drum Ovens offers highly durable designs, and can ship fully assembled.
Our Steam Drum Heaters provide the perfect way to safely heat and/or melt a wide range of ingredients or materials.
All Sahara Hot Boxes carry a 2 year warranty and are backed by years of fabrication experience and drum oven expertise.
We can custom design and build a drum oven to meet your facility's specific needs. Electric Drum Heaters are also available.
Contact a Benko Products Drum Oven Specialist Today!
