EPI Chemical Storage Buildings / Containers
HazMat Chemical Storage Solutions by Benko Products, Inc
EPI Chemical Storage now offers Heavy Duty HazMat Chemical Storage Buildings that are built using durable, high quality materials and offer the best available technology to provide safe, OSHA compliant storage of chemicals and other hazardous materials.
Click Here to see the many different sizing configurations. These storage units feature modular construction and riveted design, allowing for quick assembly and delivery. Fire & Explosion resistant models are available also.
Cost Effective • Innovative Designs
Built to Last
Additional Resources
EPI Chemical Storage Unit Specifications
A Containment System
• Completely portable
• Durable, high quality, high strength
steel construction
• Hazard labeling
• Easy under floor visual inspection
• Static grounding
• 2-year manufacturer's warranty
Common Applications
• Regulatory compliance
• Security
• Secondary containment
• Limiting personal and property liability
• Employee production
• Improved public image
Capacity / Size
See Below for complete charts outlining the standard models available and corresponding specifications.
• From 4' to 24' long
• From 5 to 44 drums capacity
• Customization available on all models
Features
• Options include: Non-fire rated,
2-hour fire rated, and 4-hour fire-rated
• Advanced protective coatings throughout
• Oversized sump capacity
• No ground-to-metal contact
• Easy to move with built-in forklift access points
• UL listed, fire-rated doors (on fire rated models)

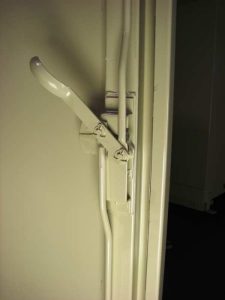

• Heavy duty security latch with emergency release
• Completely prefabricated and ready to use
Available Options
• Heating or cooling capabilities

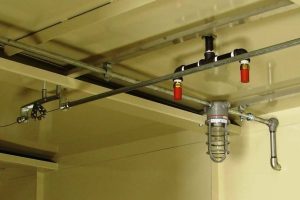

• Fire suppression systems
• Interior partition wall(s)
• Emergency eye / face cleansing systems
• Adjustable shelving for small containers
• Forced air ventilation systems
• Loading ramp
• Interior lighting
• Exterior lighting
• Spill detection system
• R12 insulation

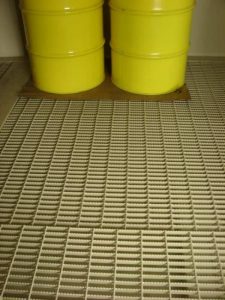

• Fiberglass floor grating
• Full customization available upon request
Installation
Shipped completely assembled.
Set in place and hook up power supply.
EPI Chemical Storage Buildings - Fire Rated / Explosion Resistant
| Rated for: | Model # | Outside Dimensions | Doors | Sump Capacity | Est. Weight | Capacity |
|---|---|---|---|---|---|---|
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1412 EP-1212 EP-1112 |
8' L x 8'-6" W x 8'-6" H | One Set of 60" x 80" Double-Doors |
245 Gallons | 5,500 lbs | 12 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1420 EP-1220 EP-1120 |
12' L x 8'-6" W x 8'-6" H | One Set of 60" x 80" Double-Doors |
367 Gallons | 7,000 lbs | 20 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1428 EP-1228 EP-1128 |
16' L x 8'-6" W x 8'-6" H | One Set of 60" x 80" Double-Doors |
490 Gallons | 8,500 lbs | 28 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1436 EP-1236 EP-1136 |
20' L x 8'-6" W x 8'-6" H | Two Sets of 60" x 80" Double-Doors |
612 Gallons | 10,000 lbs | 36 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1444 EP-1244 EP-1144 |
24' L x 8'-6" W x 8'-6" H | Two Sets of 60" x 80" Double-Doors |
735 Gallons | 11,500 lbs | 44 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1452 EP-1252 EP-1152 |
28' L x 8'-6" W x 8'-6" H | Two Sets of 60" x 80" Double-Doors |
857 Gallons | 13,000 lbs | 52 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1460 EP-1260 EP-1160 |
32' L x 8'-6" W x 8'-6" H | Two Sets of 60" x 80" Double-Doors |
980 Gallons | 14,500 lbs | 60 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1468 EP-1268 EP-1168 |
36' L x 8'-6" W x 8'-6" H | Two Sets of 60" x 80" Double-Doors |
1,102 Gallons | 16,000 lbs | 68 drums (55 Gal) |
| 4-Hour Fire 2-Hour Fire Non-Fire |
EP-1474 EP-1274 EP-1174 |
40' L x 8'-6" W x 8'-6" H | Two Sets of 60" x 80" Double-Doors |
1,225 Gallons | 17,500 lbs | 74 drums (55 Gal) |

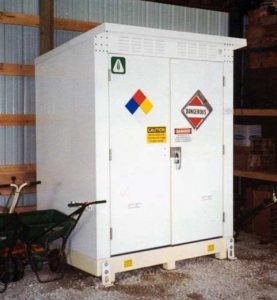

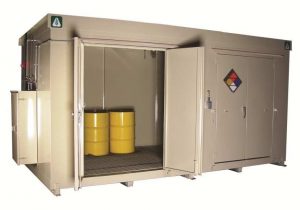

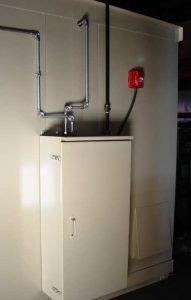

EPI Chemical Storage Building & Container Images
