Drum Heater 'Sahara Hot Box' Steam Powered Model S2

Part of Benko Products 'Sahara Hot Box' line of Steam Drum Ovens & Drum Heaters

Model S2 Steam Drum Heater is Designed to Accommodate 2 (55 gallon) Drums.

The Benko Products SAHARA HOT BOX line of drum heaters and ovens are recognized as the industry leader in 55-gallon drum heating equipment.

Our Steam Drum Heaters and Drum Ovens are available with digital controls with over-temperature protection. Units in a manifolded arrangement can be individually turned off when not in use, perfect for your drum storage and drum heater needs.

Cost Effective • Innovative Designs

Benko Products | Made in the USA | Built to Last

Built to Last

Model S2 Steam Drum Heater Specifications

Details
The Hot Box has many unique features:
• Rugged steel construction
• Portable; Just pick up with a forklift
• Built-in spill containment
• Zero-ground clearance available
• 2 Year Manufacturer’s warranty

Capacity
1 drum (55 gal.), or 1,000 lbs total

Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available

Dimensions
Interior dimensions:
29”W x 28.25”D x 47.5” H
Exterior dimensions:
36” W x 36” D x 66.75” H

Insulation
3" thick, 6# density mineral wool

Heating Medium
Steam, hot oil, or hot water

Heat Exchanger
• Finned tube heating coil rated for saturated steam up to 200 psig.
• Recirculating coil available for hot oil or hot water

Temperature Range
Room temperature to 350°F

Integrated Spill Containment Pan
14 gallon capacity

Finish
• Exterior finished with acrylic enamel.
• Interior finished with heat resistant silver.
• Stainless steel available.

Weight
850 lbs.

Installation
Shipped completely assembled.
Set in place and hook up power supply.

Engineering
Custom engineered, computer designed units are available. Contact us for more information.



Available Options for Steam Model S2

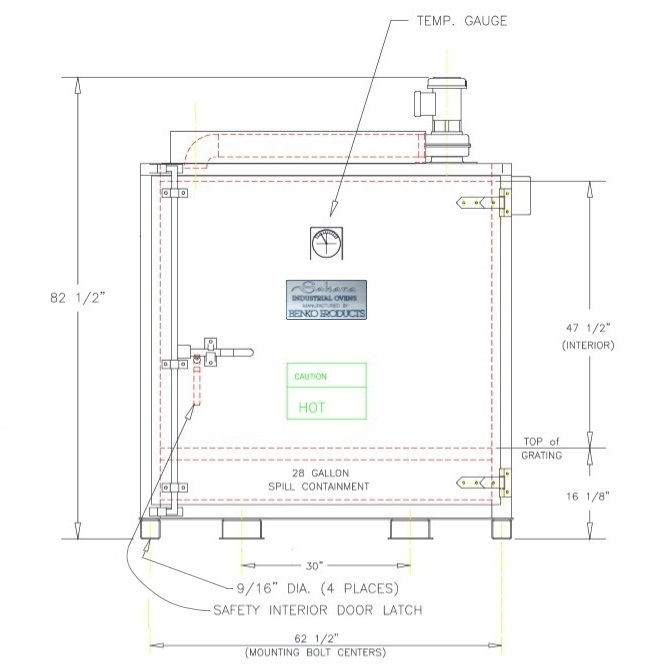

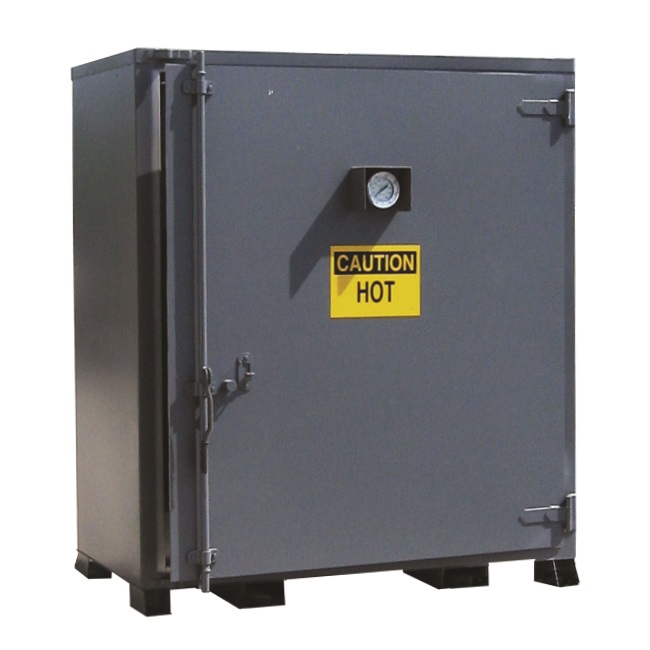

Model S2 Steam Drum Heater - Image Gallery

Steam Powered Drum Oven Model S2 Model S2 - Steam Drum Heater

The Sahara Hot Box line of Steam Powered Drum Ovens offers highly durable designs, and can ship fully assembled.
Our Steam Drum Heaters provide the perfect way to safely heat and/or melt a wide range of ingredients or materials.
All Sahara Hot Boxes carry a 2 year warranty and are backed by years of fabrication experience and drum oven expertise.
We can custom design and build a drum oven to meet your facility's specific needs. Electric Drum Heaters are also available.
