EPI Chemical Storage Cabinets
HazMat Chemical Storage Solutions by Benko Products
EPI Chemical Storage Cabinets offer the highest quality and the best available technology to provide Safe Chemical Storage and storage of other hazardous materials. Fire and explosion resistant.
Sized for capacities from 4 through 44 drums, these storage units feature modular construction and riveted design, allowing for quick assembly and delivery.
Cost Effective • Innovative Designs
Built to Last
Additional Resources
EPI Chemical Storage Cabinets Specifications
A Containment System
• Completely portable
• Durable, high quality, high strength
steel construction
• Hazard labeling
• Easy under floor visual inspection
• Static grounding
• 2-year manufacturer's warranty.
Common Applications
Common solution for:
• Regulatory compliance
• Security
• Secondary containment
• Limiting personal and property liability
• Employee production
• Improved public image
Common Applications
Common solution for:
• Regulatory compliance
• Security
• Secondary containment
• Limiting personal and property liability
• Improved public image
Capacity / Size
See Below for a complete chart below outlining the standard models available and corresponding specifications.
• From 4' to 24' long
• From 5 to 44 drums capacity
• Customization available on all models
Features
• Options include: Non-fire rated,
2-hour fire rated, and 4-hour fire-rated
• Advanced protective coatings throughout
• Oversized sump capacity
• No ground-to-metal contact
• Easy to move with built-in forklift access points
• UL listed, fire-rated doors (on fire rated models)
• Heavy duty security latch w/emergency release
• Completely prefabricated and ready to use
Available Options
• Heating or cooling capabilities
• Fire suppression systems
• Interior partition wall(s)
• Emergency eye / face cleansing systems
• Forced air ventilation systems
• Loading ramp
• Interior lighting
• Exterior lighting
• Spill detection system
• R12 insulation
• Fiberglass floor grating
• Full customization available upon request
Installation
Shipped completely assembled.
Set in place and hook up power supply.
2 Hour Fire Rated / Explosion Resistant Chemical Storage Cabinets
| Rated | Model # | Outside Dimensions | Doors | Sump Capacity | Est. Weight | Capacity | # of Tiers |
|---|---|---|---|---|---|---|---|
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1404 CEP-1204 CEP-1104 |
5'-6" W X 5' D X 5'-6" H | One Swing Door Single-Sided |
56 Gallons | 2,050 lbs. | 1 pallet / tote (4 Drums) |
One Tier |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1408 CEP-1208 CEP-1108 |
10' W X 5' D x 5'-6" H | Two Swing Doors Single-Sided |
104 Gallons | 3,300 lbs. | 2 pallets / totes (8 Drums) |
One Tier |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1412 CEP-1212 CEP-1112 |
15' W x 5' D x 5'-6" H | Three Swing Doors Single-Sided |
160 Gallons | 5,150 lbs. | 3 pallets / totes (12 Drums) |
One Tier |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1416 CEP-1216 CEP-1116 |
10' W x 5' D x 10' H | Two Swing Doors Single-Sided |
104 Gallons | 5,025 lbs. | 4 pallets / totes (16 Drums) |
Two Tiers |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1424 CEP-1224 CEP-1124 |
15' W x 5' D x 10' H | Three Swing Doors Single-Sided |
160 Gallons | 7,275 lbs. | 6 pallets / totes (24 Drums) |
Two Tiers |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1432 CEP-1232 CEP-1132 |
20' W x 5' D x 10' H | Four Swing Doors Single-Sided |
208 Gallons | 10,050 lbs. | 8 pallets / totes (32 Drums) |
Two Tiers |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1440 CEP-1240 CEP-1140 |
25' W x 5' D x 10' H | Five Swing Doors Single-Sided |
280 Gallons | 12,825 lbs. | 10 pallets / totes (40 Drums) |
Two Tiers |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1448 CEP-1248 CEP-1148 |
30' W x 5' D x 10' H | Six Swing Doors Single-Sided |
336 Gallons | 15,600 lbs. | 12 pallets / totes (48 Drums) |
Two Tiers |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-1472 CEP-1272 CEP-1172 |
30' W x 5' d x 15' H | Six Swing Doors Single-Sided |
396 Gallons | 24,900 lbs. (two sections) |
18 pallets / totes (72 Drums) |
Three Tiers |
| 4-Hour Fire 2-Hour Fire Non-Fire |
CEP-14144 CEP-12144 CEP-11144 |
30' W x 10' D x 15' H | Twelve Swing Doors Double-Sided |
792 Gallons | 50,500 lbs. (two sections) |
36 pallets / totes (144 Drums) |
Three Tiers |

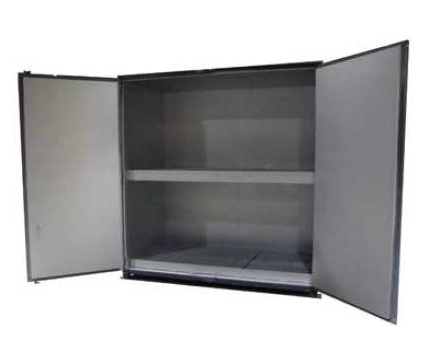

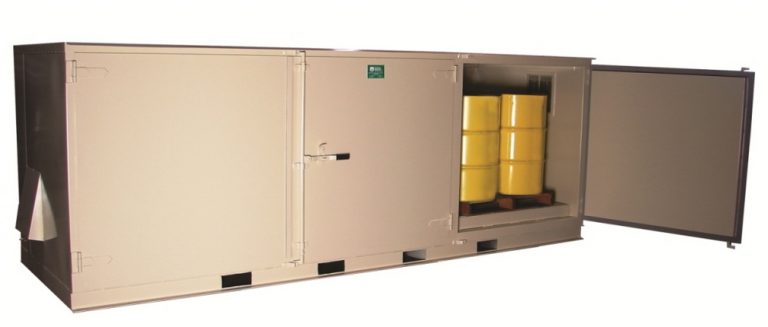

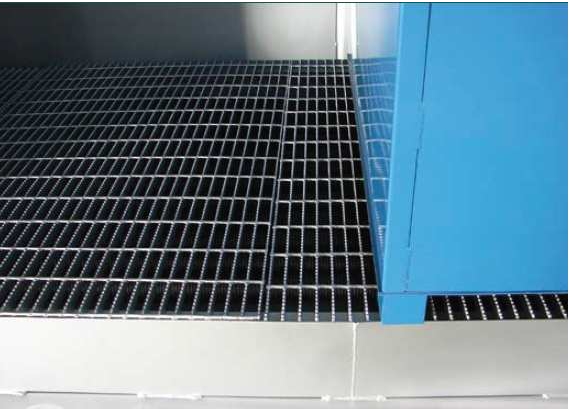

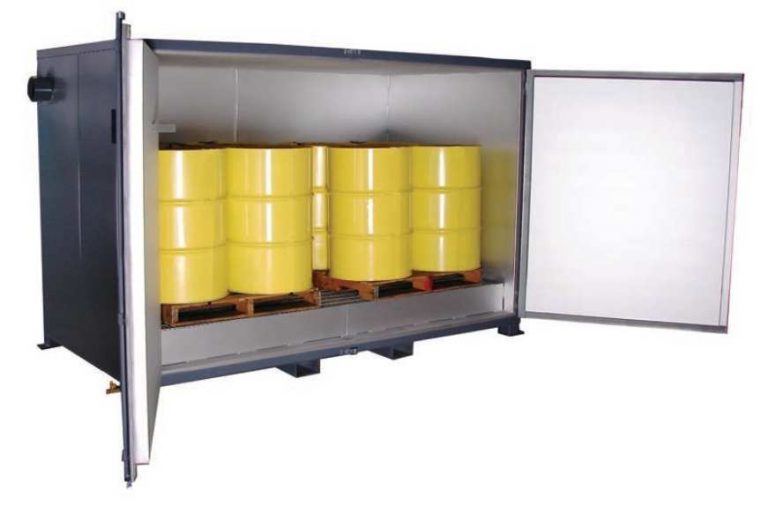

EPI Chemical Storage Cabinets Image Gallery
