'Sahara Hot Box' Model E12 Electric Drum & Tote Heater

Precise, Temperature Controled Drum Oven for Heating up to 12 drums or 3 Totes

Our Model E12 Electric Drum Heater (and/or Tote Heater) features state-of-the-art digital controls with independent over-temperature protection. Low-watt density heaters assure years of trouble-free operation, perfect for your drum storage and drum heater needs, where up to 12 drums or 3 Totes require heating or temperature control.

The Benko Products SAHARA HOT BOX Electric Drum Heater is recognized as the industry leader in 55-gallon drum and/or Tote heating equipment.

Cost Effective • Innovative Designs

Benko Products | Made in the USA | Built to Last

Built to Last

Model E12 Electric Drum Heater Specifications

Details
The Hot Box has many unique features:
• Precise digital temperature control
• Portable; just pick-up with a forklift
• Built-in spill containment
• Zero-ground clearance available.
3-Year Manufacturer's Warranty!

Capacity
12 drums (55 gal.) or 3 totes
12,000 lbs total capacity

Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available

Dimensions
Interior dimensions:
172.25"W x 55.25"D x 49"H
Exterior dimensions:
179.25"W x 62"D x 84"H

Insulation
3" thick, 6# density mineral wool

Heating Medium
Electricity

Heat Capacity
• 20KW (optional kw ratings available)
• 240 or 480 volt, 3 phase
(additional voltages available)
• Digital temperature controller with independent high temperature cut off.

Temperature Range
Room temperature to 300°F

Spill Containment Pan
160 gallon capacity

Finish
• Exterior finished with acrylic enamel
• Interior finished with heat resistant silver
• Stainless steel available

Weight
4,875 lbs.

Installation
Shipped completely assembled.
Set in place and hook up power supply.

Air Circulation
2000 cfm air circulation blower with controls; 2 HP, TEFC

* Electric models not to be used to heat
flammable or combustible materials.

* Electric models are not explosion proof rated and
should not be used in hazardous locations.

* Class A ovens available for heating flammables.

Available Options for Electric Models

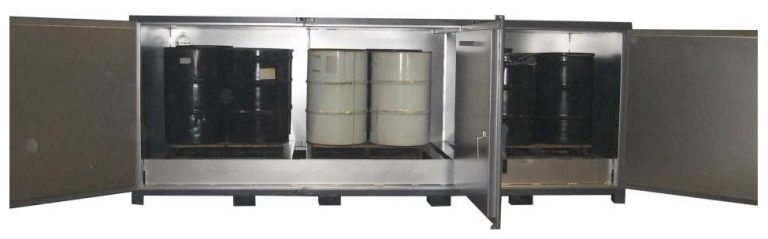

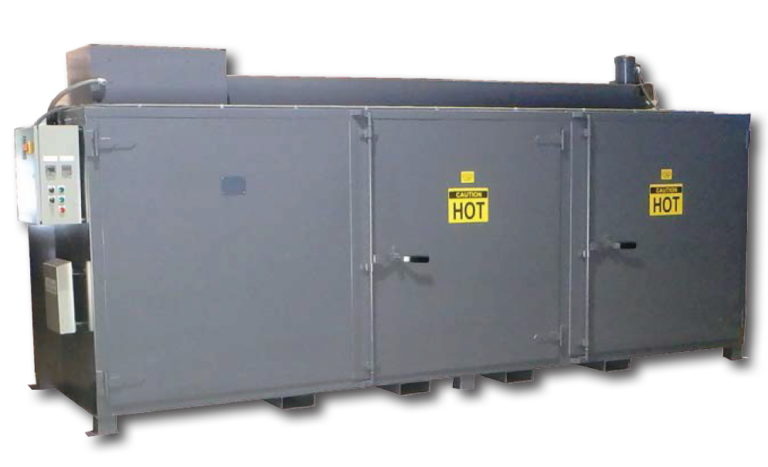

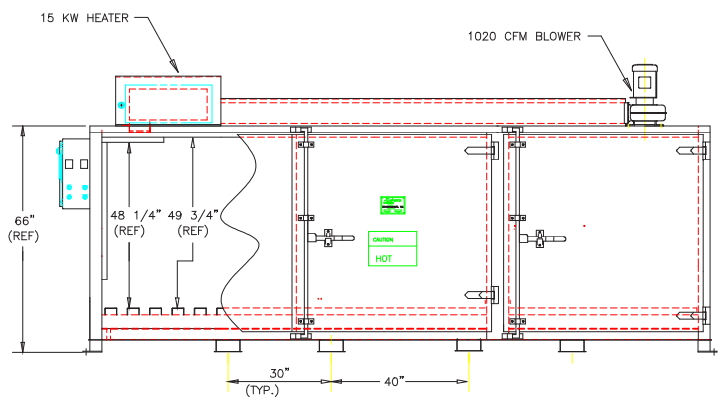

Model E12 Electric Drum Heater - Image Gallery

The Benko Products SAHARA HOT BOX drum heaters and ovens are recognized as the industry leader in 55-gallon drum heating equipment.

The Sahara Hot Box line of Electric Drum Ovens by Benko Products offers highly durable designs, and can ship fully assembled.
Our Electric Drum Heaters provide the perfect way to safely heat and/or melt a wide range of ingredients or materials.
All Sahara Hot Boxes carry a 2 year warranty and are backed by years of fabrication experience and drum oven expertise.
We can custom design and build a drum oven to meet your facility's specific needs. Steam powered models are also available.
Contact a Benko Products Drum Oven Specialist Today!
