Steam Drum Heater 'Sahara Hot Box' Model S1

Part of Benko Products 'Sahara Hot Box' line of Steam Drum Ovens & Drum Heaters

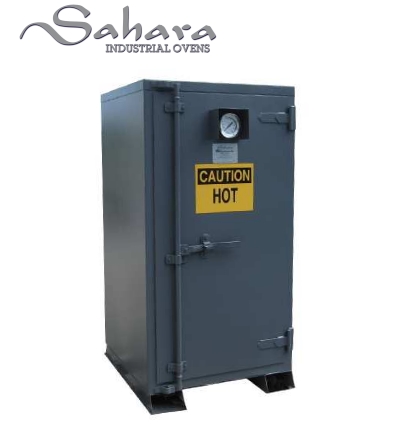

Model S1 Steam Drum Heater. The Perfect Solution for Heating a Single 55 Gallon Drum, using the Power of Steam.

The Benko Products SAHARA HOT BOX line of drum heaters and ovens are recognized as the industry leader in 55-gallon drum heating equipment.

Our Steam Drum Heaters and Drum Ovens are available with state-of-the-art digital controls with independent over-temperature protection. Units in a manifolded arrangement can be individually turned off when not heating, perfect for your drum storage and drum heater needs.

Cost Effective • Innovative Designs

Benko Products | Made in the USA | Built to Last

Built to Last

Model S1 Steam Drum Heater Specifications

The Hot Box has many unique features:
• Rugged steel construction
• Portable; Just pick up with a forklift
• Built-in spill containment
• Zero-ground clearance available
• 2 Year Manufacturer’s warranty

1 drum (55 gal.), or 1,000 lbs total

Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available

Interior dimensions:
29”W x 28.25”D x 47.5” H
Exterior dimensions:
36” W x 36” D x 66.75” H

3" thick, 6# density mineral wool

Heating Medium
Steam, hot oil, or hot water

Heat Exchanger
• Finned tube heating coil rated for saturated steam up to 200 psig.
• Recirculating coil available for hot oil or hot water

Temperature Range
Room temperature to 350°F

Integrated Spill Containment Pan
14 gallon capacity

• Exterior finished with acrylic enamel.
• Interior finished with heat resistant silver.
• Stainless steel available.

850 lbs.

Shipped completely assembled.
Set in place and hook up power supply.

Custom engineered, computer designed
units are available. Contact us for more

Available Options for Steam Models

Model S1 Steam Drum Heater Image Gallery

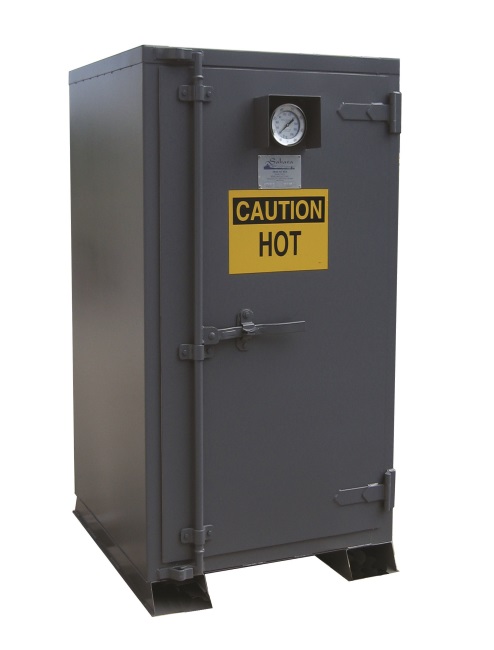

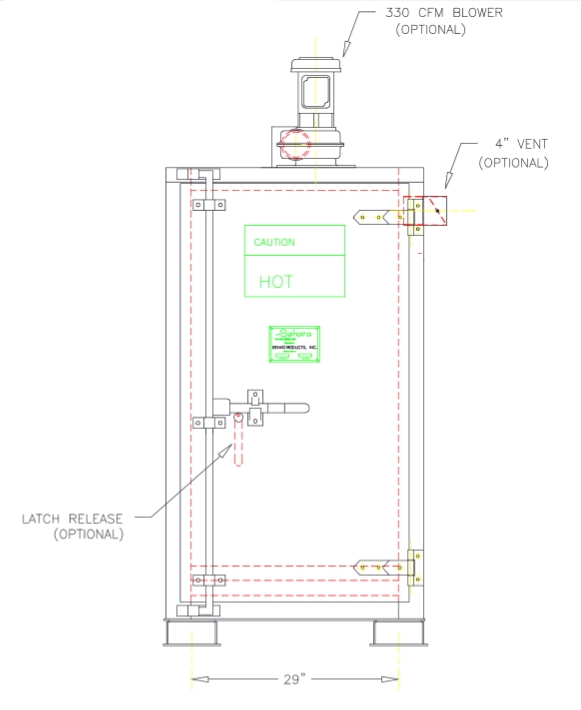

'Sahara Hot Box' Model S1 - Steam Drum Heater by Benko Products Steam Drum Heater Model S1 - CAD

The Sahara Hot Box line of Steam Powered Drum Ovens offers highly durable designs, and can ship fully assembled.
Our Steam Drum Heaters provide the perfect way to safely heat and/or melt a wide range of ingredients or materials.
All Sahara Hot Boxes carry a 2 year warranty and are backed by years of fabrication experience and drum oven expertise.
We can custom design and build a drum oven to meet your facility's specific needs. Electric Drum Heaters are also available.
Contact a Benko Products Drum Oven Specialist Today!
