'Sahara Hot Box' Model E32 Electric Drum & Tote Heater

Part of Benko Products 'Sahara Hot Box' line of Electric Drum Ovens & Drum Heaters

Our E32 Electric Drum Heater (and/or Tote Heater) features state-of-the-art digital controls with independent over-temperature protection. Low-watt density heaters assure years of trouble-free operation, perfect for your drum storage and drum heater needs, where up to 32 drums or 8 Totes require heating or temperature control.

The Benko Products SAHARA HOT BOX is recognized as the industry leader in 55-gallon drum and/or Tote heating equipment.

Cost Effective • Innovative Designs

Benko Products | Made in the USA | Built to Last

Built to Last

Model E32 Electric Drum Heater Specifications

Details
The Hot Box has many unique features:
• Precise digital temperature control
• Portable; just pick-up with a forklift
• Built-in spill containment
3-Year Manufacturer's Warranty!

Capacity
32 drums (55 gal.) or 8 totes
32,000 lbs total capacity

Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available

Dimensions
Interior dimensions:
230"W x 55.25"D x 98"H
Exterior dimensions:
237"W x 62"D x 118"H

Insulation
3" thick, 6# density mineral wool

Heating Medium
Electricity

Heat Capacity
• 30KW (optional kw ratings available)
• 480 volt, 3 phase
(additional voltages available)
• Digital temperature controller with independent high temperature cut off.

Temperature Range
Room temperature to 300°F

Spill Containment Pan
275 gallon capacity

Finish
• Exterior finished with acrylic enamel
• Interior finished with heat resistant silver or black
• Stainless steel available

Weight
10,000 lbs.

Installation
Shipped completely assembled.
Set in place and hook up power supply.

Air Circulation
Two 2,000 cfm air circulation blower with controls; 2 HP, TEFC

* Electric models not to be used to heat
flammable or combustible materials.
* Electric models are not explosion proof rated and
should not be used in hazardous locations.
* Class A ovens available for heating flammables.

Model E32 Electric Drum Heater - Image Gallery

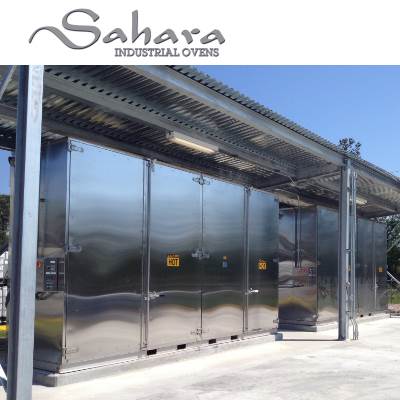

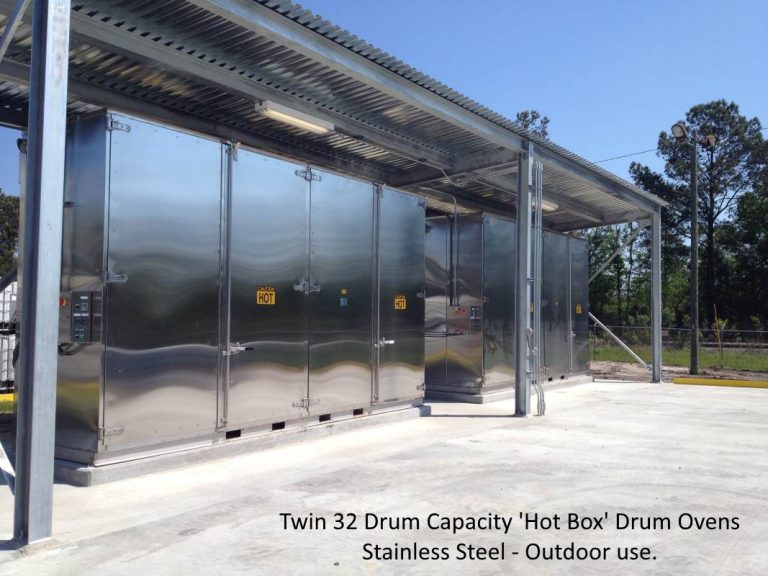

Two 32 drum capacity, stainless steel Hot Boxes

The Sahara Hot Box line of Electric Drum Ovens by Benko Products offers highly durable designs, and can ship fully assembled.
Our Electric Drum Heaters provide the perfect way to safely heat and/or melt a wide range of ingredients or materials.
All Sahara Hot Boxes carry a 2 year warranty and are backed by years of fabrication experience and drum oven expertise.
We can custom design and build a drum oven to meet your facility's specific needs. Steam powered models are also available.
Contact a Benko Products Drum Oven Specialist Today!
