'Sahara Hot Box' Model E2 Electric Drum Heater
Drum Oven Designed for Heating or Controlling Temperature of up to 2 Drums
Our Model E2 Electric Drum Heater features state-of-the-art digital controls with independent over-temperature protection. Low-watt density heaters assure years of trouble-free operation, perfect for your drum storage and drum heater needs, where 1 - 2 drums require heating or temperature control.
The Benko Products SAHARA HOT BOX Drum Heaters and Ovens are recognized as the industry leader in 55-gallon drum heating equipment..
Cost Effective • Innovative Designs
Built to Last
Additional Resources
Model E2 Electric Drum Heater Specifications
Details
The Hot Box has many unique features:
• Precise digital temperature control with overtemperature protection
• Portable; just pick-up with a forklift
• Built-in spill containment
• Zero-ground clearance available.
• 3-Year Manufacturer's Warranty!
Capacity
2 drums (55 gal.)
2,000 lbs. total capacity
Materials of Construction
All steel construction includes:
• 12 gauge interior and 14 gauge exterior walls
• Integrated framing and structural members ensure toughness
• 304 stainless steel construction available

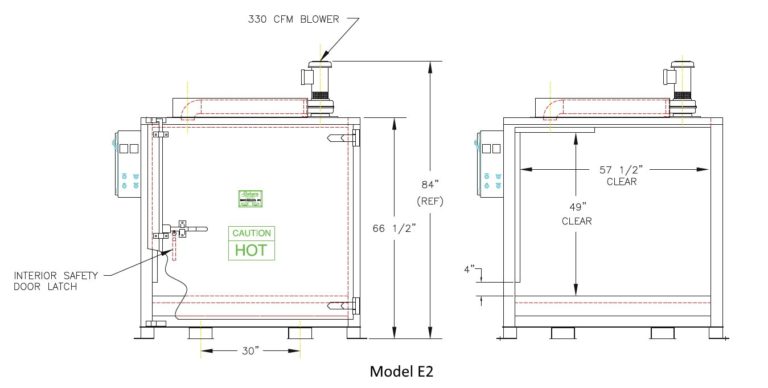

Dimensions
Interior dimensions:
57.5"W x 29.25"D x 49"H
Exterior dimensions:
66"W x 36"D x 84.5"H
Insulation
3" thick, 6# density mineral wool
Heating Medium
Electricity
Heat Exchanger
• 6KW (optional kw ratings available)
• 240 or 480 volt, 3 phase (additional voltages available)
• Digital temperature controller with independent high temperature cut off.
Temperature Range
Room temperature to 300°F
Spill Containment Pan
28 gallon capacity
Finish
• Exterior finished with acrylic enamel
• Interior finished with heat resistant finish
• Stainless steel available
• Outdoor use option
Weight
1,300 lbs.
Installation
Shipped completely assembled.
Set in place and hook up power supply
Air Circulation
330 cfm air circulation blower with controls; 1/3 HP, TEFC
* Electric models not to be used to heat
flammable or combustible materials.
* Electric models are not explosion proof rated and
should not be used in hazardous locations.
* Class A ovens available for heating flammables.

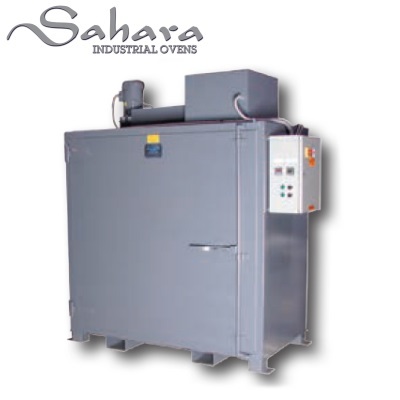

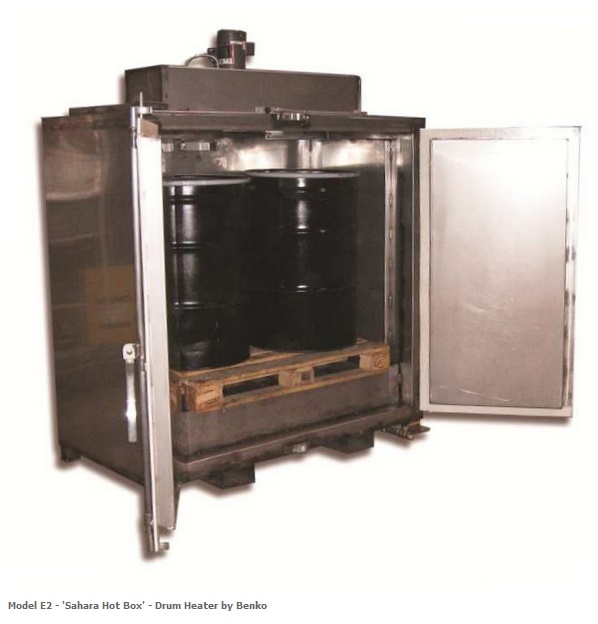

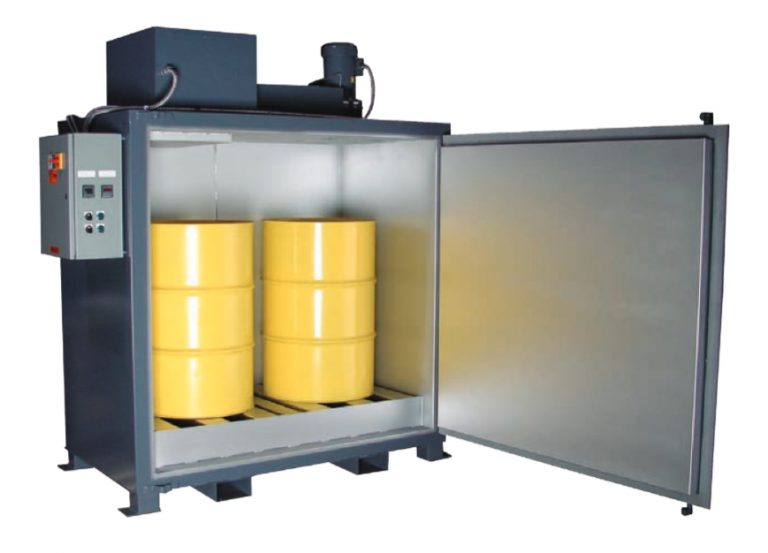

Model E2 Electric Drum Heater - Image Gallery
The Sahara Hot Box line of Electric Drum Ovens by Benko Products offers highly durable designs, and can ship fully assembled.
Our Electric Drum Heaters provide the perfect way to safely heat and/or melt a wide range of ingredients or materials.
All Sahara Hot Boxes carry a 2 year warranty and are backed by years of fabrication experience and drum oven expertise.
We can custom design and build a drum oven to meet your facility's specific needs. Steam powered models are also available.
